Local processing
Run video analytics directly at your site, close to the camera streams.
← Hardware catalogEDGE BOX
DV-AIBOX-C-8
An edge platform for local analysis of up to eight video streams. Suitable for shops, offices and individual monitoring areas.
5 TOPS INT88 video streams8 GB RAM
[ Purpose ]Compute for
Compute for
video analytics.
An edge platform for local analysis of up to eight video streams. Suitable for shops, offices and individual monitoring areas.
[ At your site ]

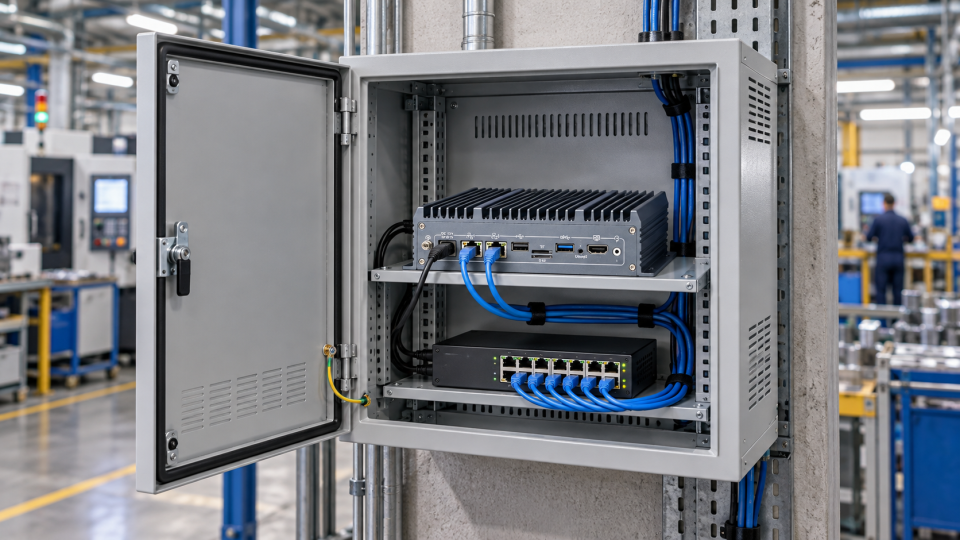

Video analytics on the factory floor.
8 video streams
Choose a compact platform for a small camera group or a pilot deployment.
Connect your infrastructure

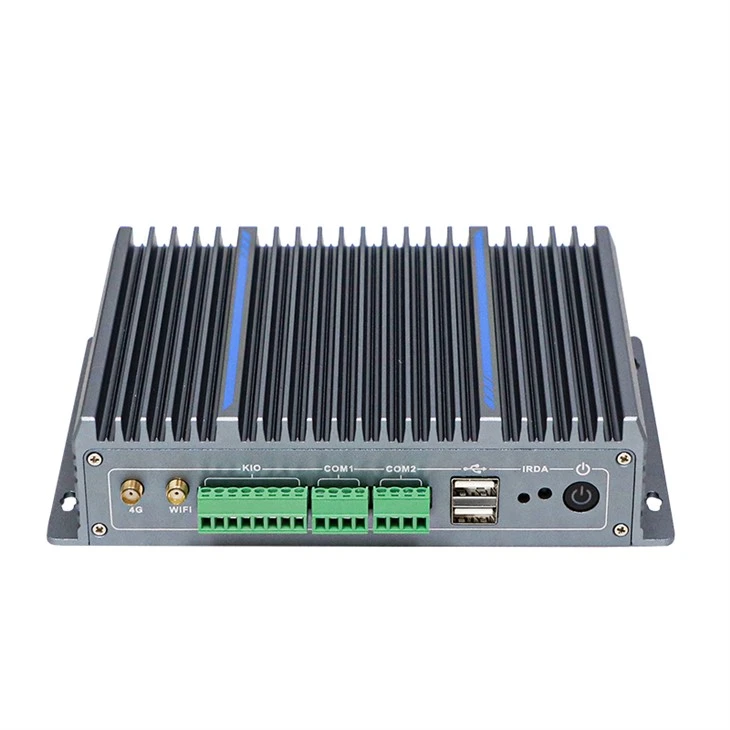

Ethernet, USB, HDMI, RS-485 and digital I/O provide options for on-site integration.
- Compute
- 5 TOPS INT8
- CPU
- Cortex-A76 + Cortex-A55, 8 cores, up to 2.4 GHz
- Analysis
- 8 video streams in real time
- Decoding
- H.265 / H.264 / AV1 / VPP / AVS2, up to 8K60
- Memory
- 8 GB
- Storage
- 128 GB eMMC
- Network
- 2 × 10/100/1000 Mbps

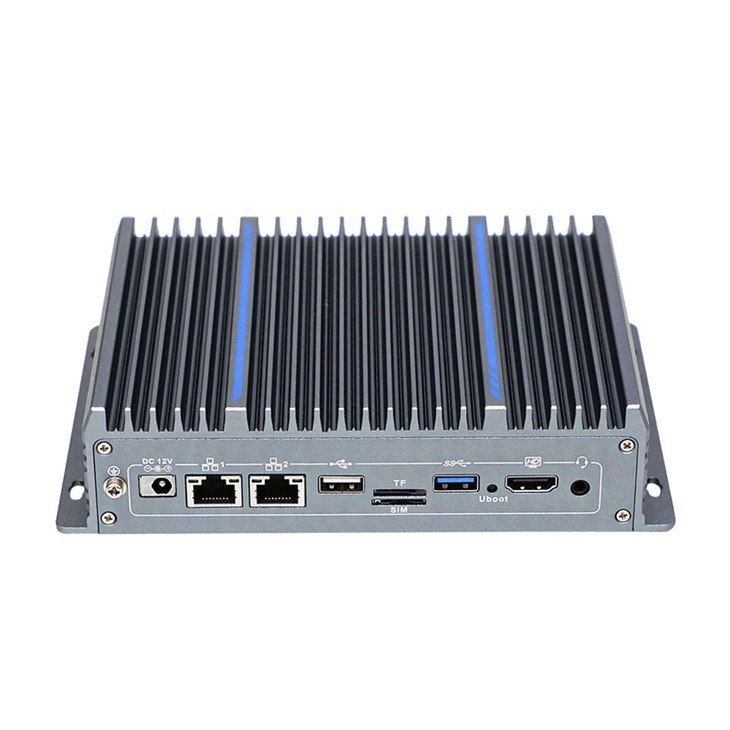

- Interfaces
- 2 × USB 3.0, 3 × USB 2.0, HDMI, TF, 2 × RS-485, 4 digital channels, 2 alarm inputs
- Dimensions
- 235 × 150 × 62.5 mm
- Power
- DC 12 V / 2 A, consumption approx. 8 W
- Temperature
- −20 °C to +70 °C
- OS
- Ubuntu Linux
