32 streams in 1U
A compact rack node for server rooms and telecom cabinets.
← Hardware catalogRACK 1U
DV-AIBOX-P-1U-32
A 1U rack platform bridging compact edge boxes and full-size AI servers. Provides 32 TOPS INT8 and decoding of 32 streams at 1080p@25.
32 TOPS INT832 video streams16 GB LPDDR4
1U form-factor illustration[ Purpose ]Compute for
Compute for
video analytics.
A 1U rack platform bridging compact edge boxes and full-size AI servers. Provides 32 TOPS INT8 and decoding of 32 streams at 1080p@25.

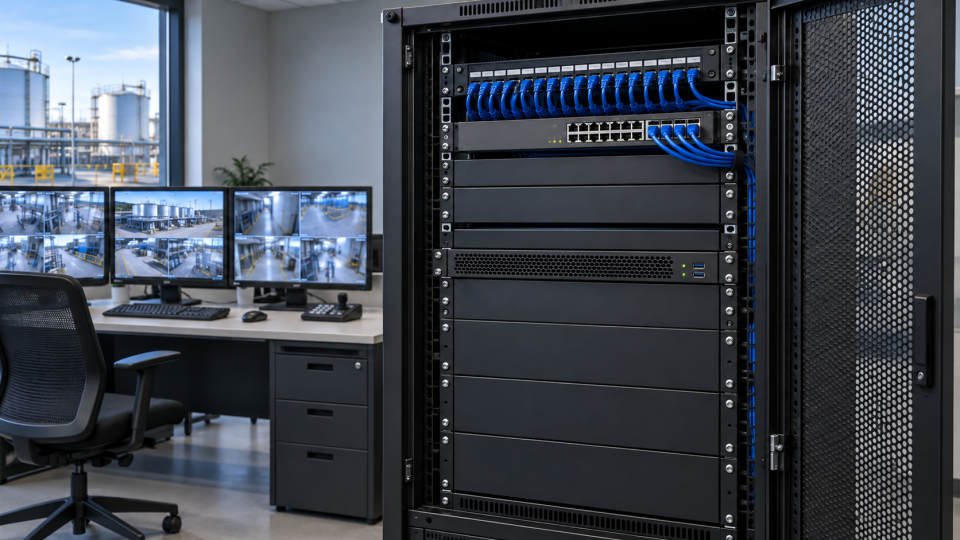

[ At your site ]
Compute inside the security office.
32 TOPS INT8
Supports 32 simultaneous real-time video analysis tasks.
Flexible connectivity
Dual Gigabit Ethernet, dual-band Wi-Fi and optional 4G/5G expansion.
- Compute
- 32 TOPS INT8; 16 TFLOPS FP16/BF16; 2 TFLOPS FP32
- CPU
- 8-core ARM A53, up to 2.3 GHz
- Analysis
- 32 simultaneous analysis tasks
- Decoding
- 32 × H.265/H.264 1080p@25
- Encoding
- 12 × H.265/H.264 1080p@25
- Memory
- 16 GB LPDDR4 / LPDDR4X
- Storage
- 64 GB eMMC; M.2 SATA 3.0 SSD; TF
- Network
- 2 × Gigabit Ethernet; Wi-Fi 2.4/5 GHz; optional 4G/5G
- Interfaces
- 2 × USB 3.0, 2 × USB 2.0, HDMI, RS-232, RS-485
- Power
- DC 12 V, consumption approx. 20 W
- Temperature
- −20 °C to +70 °C
- OS
- Ubuntu Linux
