Centralised analytics
A server platform for consolidating video analytics across large sites and multiple monitoring areas.
← Hardware catalogAI SERVER 2U
DV-AISERVER-P-96-8
A high-density 2U configuration with two AMD EPYC processors, up to eight SC7-HP75 accelerators and dual-port 10GbE SFP+ networking.
up to 8 AI cards96 tasks / card2 × AMD EPYC
[ Purpose ]Compute for
Compute for
video analytics.
A high-density 2U configuration with two AMD EPYC processors, up to eight SC7-HP75 accelerators and dual-port 10GbE SFP+ networking.

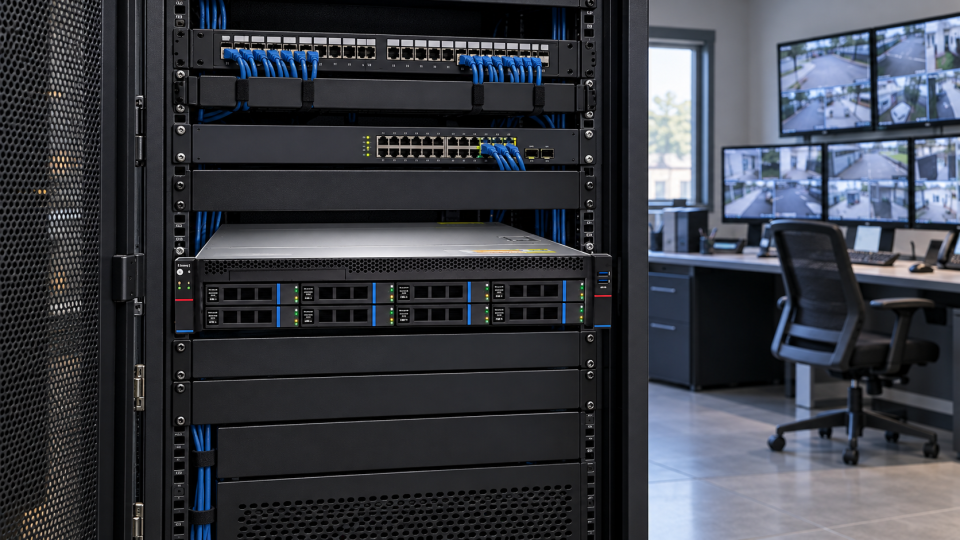

[ At your site ]
Compute inside the security office.
up to 8 AI cards
Expand the accelerator configuration as your video analysis requirements grow.
Rack infrastructure
Server storage, dedicated networking and redundant power for a central compute node.
- Processor
- AMD EPYC 7501, 32C/64T, 2.0 GHz ×2
- AI accelerators
- SC7-HP75, 96T per card, up to 8 cards
- Analysis
- 96 tasks in real time per card
- Decoding
- 96 × H.265/H.264 1080p@25 per card
- Memory
- 32 GB DDR4-3200 ECC REG ×4; up to 16 slots
- Storage
- SSD 480 GB + 3 × HDD 8 TB; Broadcom 9361-8i RAID
- Network
- dual-port 10GbE SFP+ with two optical modules
- Power
- redundant power supply 1600 W; configurations supported up to 2200 W
- Dimensions
- 695 × 433.4 × 87.6 mm, 2U
- OS
- CentOS 7.9
- Warranty
- 3 years per manufacturer specification
