Two independent outputs
Use one channel for a light and another for a siren or controller input, according to the site scenario.
← Hardware catalogNETWORK RELAY
DV-RL-02
DV-RL-02 connects video analytics events to on-site equipment. Two independent normally open outputs can control signal devices or controller inputs. Ethernet connects the relay to the local network; commands and event rules are configured during integration.
2 NO outputsEthernet 10/100DC 5–28 V
[ Purpose ]From an event
From an event
to a response.
DV-RL-02 connects video analytics events to on-site equipment. Two independent normally open outputs can control signal devices or controller inputs. Ethernet connects the relay to the local network; commands and event rules are configured during integration.
[ At your site ]
Send a signal where it matters.

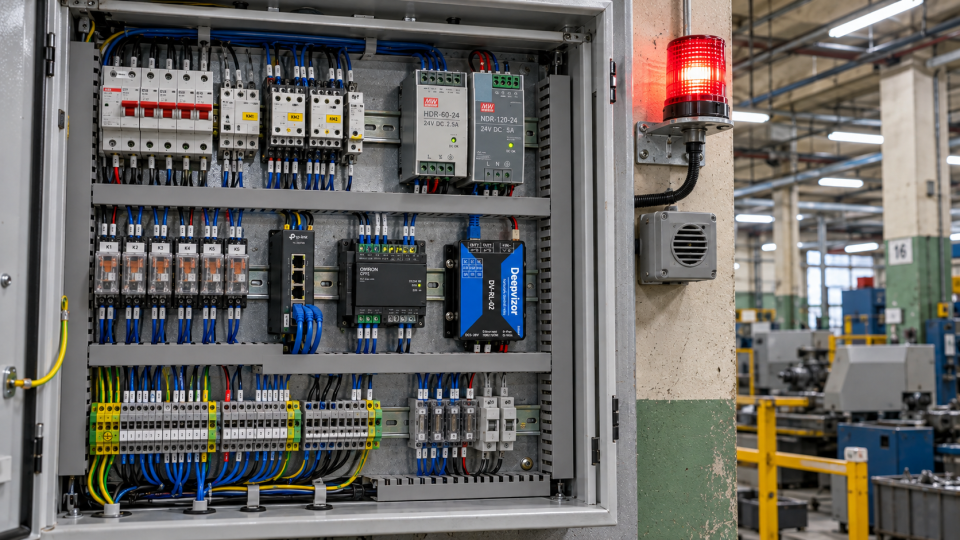

Network control
Place the relay near the controlled equipment and send commands over the local Ethernet network.
Respond to an event
A configured detector event activates a light, notification device or external system input.
- Relay outputs
- 2 independent channels
- Contact type
- Dry, normally open (NO)
- Contact load
- Up to 10 A at 250 V AC / 30 V DC
- Digital input
- 1 voltage input, 3–30 V DC
- Network
- RJ45, 10/100 Mbps Ethernet
- Network modes
- TCP Server / TCP Client / UDP / UDP Server
- Power
- 5–28 V DC, photographed version
- Contact lifetime
- 100,000 mechanical operations
- Housing and mounting
- Aluminium housing, mounting holes
Specifications describe the DC 5–28 V version shown in the supplied photograph. Newer TCP-KP-C2 versions may use a different supply range.
